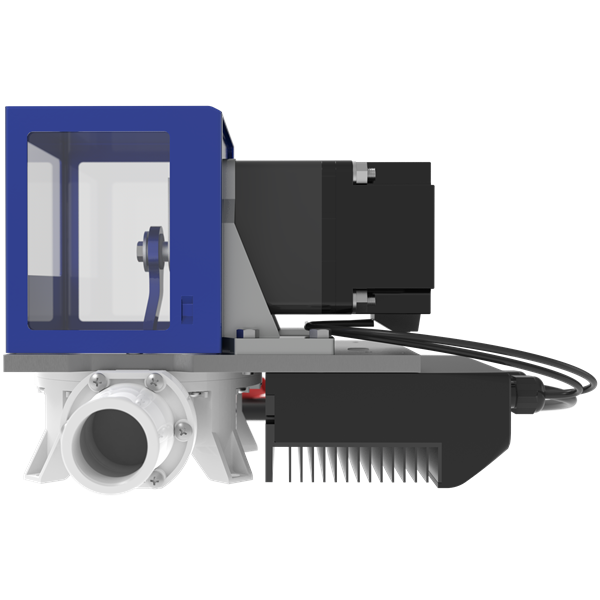

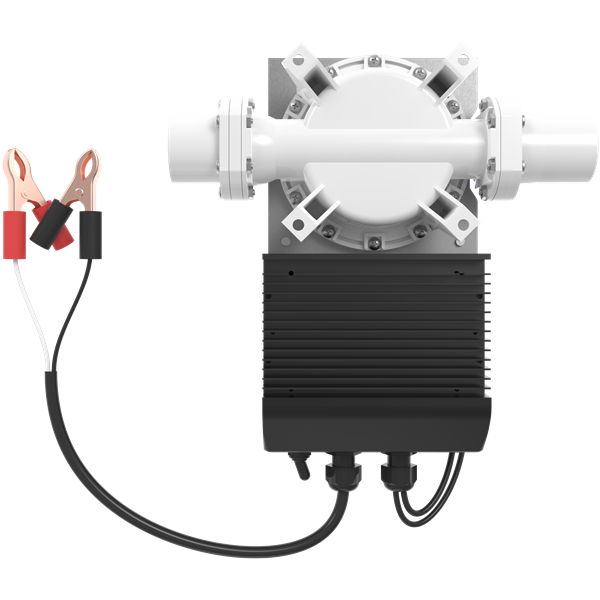

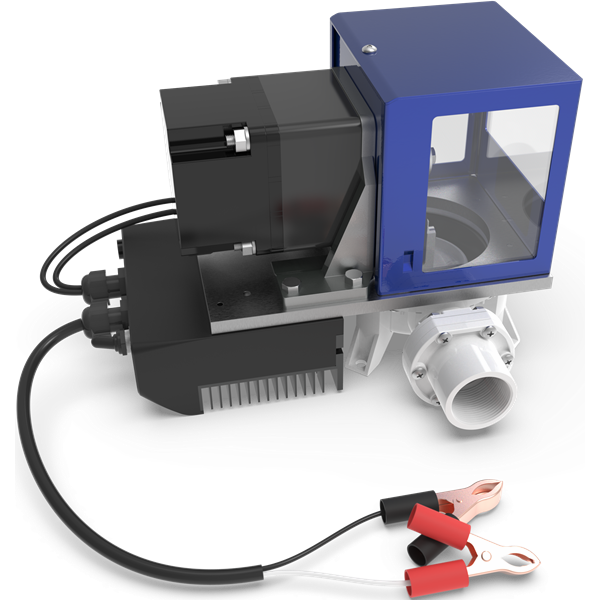

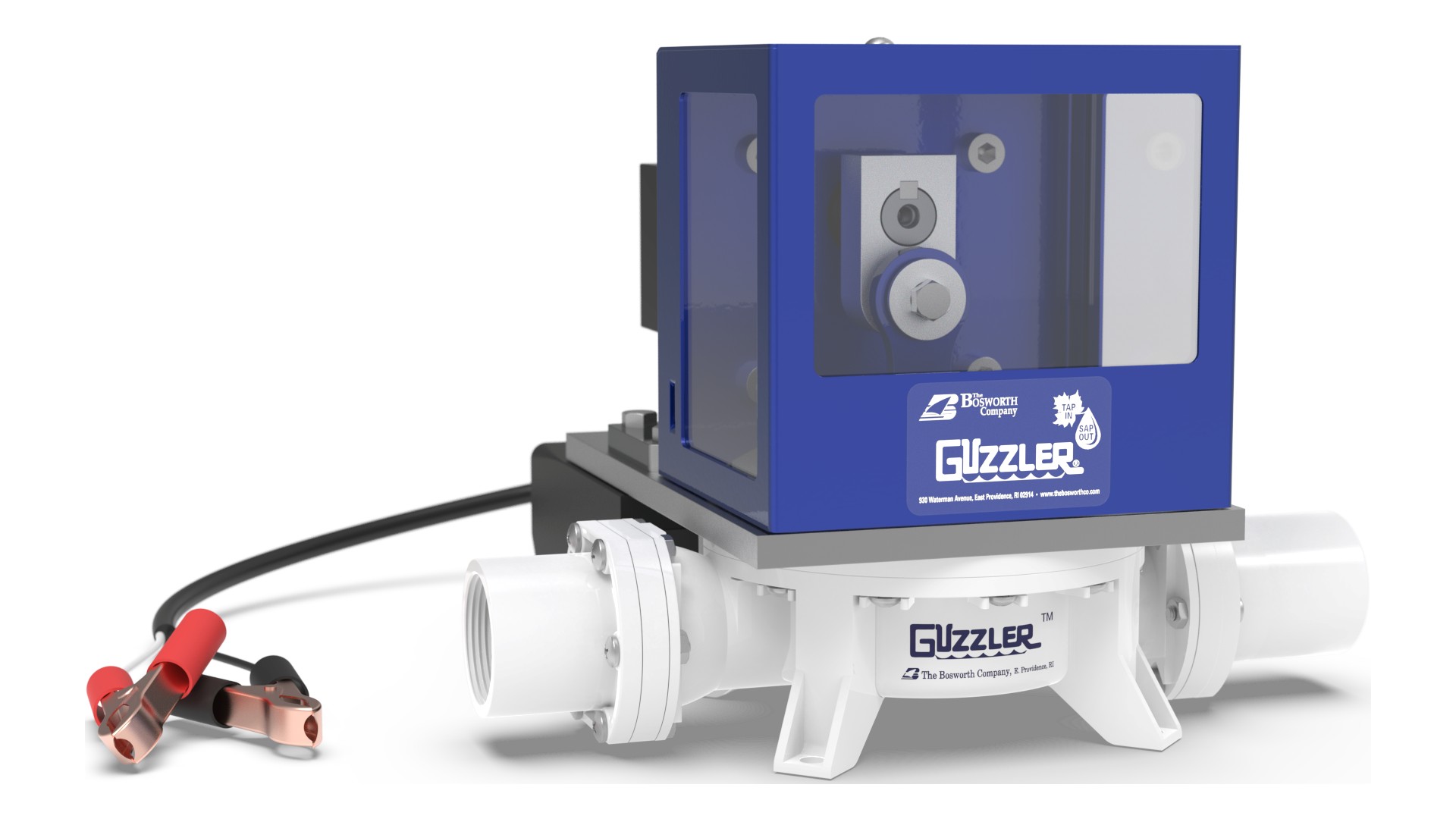

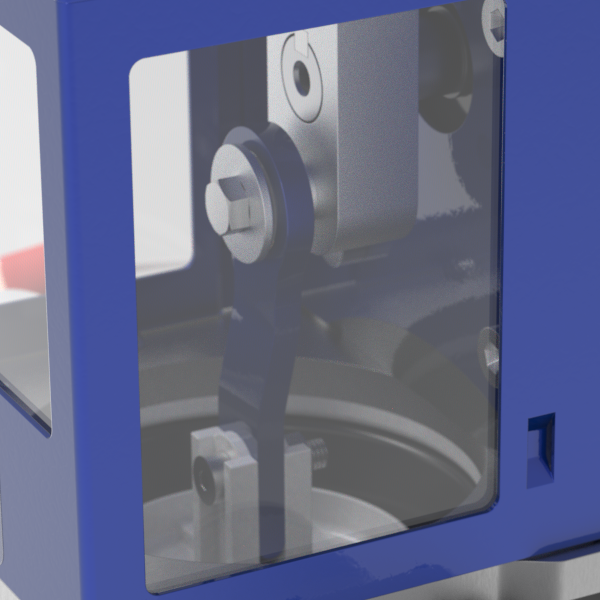

Guzzler® GE-0503N

New! Compact 12V Brushless DC Motorized Guzzler Pump. FDA-approved materials for wetted components. Accommodates up to 400 taps.

Features

  • Up to 29 in Hg vacuum on well-managed sugarbush lines (with wet valves)
  • Quiet-running, efficient 90 Watt, 12V Brushless DC motor can run for up to 20 hours on one 12v 60-amp hour battery
  • FDA-approved components for parts in contact with sap.
  • Supports up to 400 taps; 8.3 GPM (1.1 cfm). NO RELEASER REQUIRED.
  • Accommodates 1-1/4" mainline
  • Ships with spare diaphragm

Performance Dependent on configuation

Max Pressure Range0 - 10 psi / 0.00 - 0.70 bar
Lift/Head Range0.0 - 20.0 ft / 0.0 - 6.1 m
Capacity Range0.0 - 8.3 gpm / 0.0 - 31.4 lpm
Volume per stroke0.55 qt / 0.52 l
Max Service Temp220° F / 104° C

Downloads

Product Specification (English)
Product Specification (French)
Operator's Manual (English)
Operator's Manual (French)

Customize & Buy

Part Numbers / Price

Model

GE-0503N-071-58-7171-PK

SKU

GE0503N071587171PK

MSRP

$ 1,291.75

Store Locator
Replacement Parts

Speed Control

Valves

Umbrella (Silicone)

Diaphragm

Buna-N (Nitrile) (FDA-approved material)
Silicone (FDA-approved material)
Santoprene-White (FDA-approved material)

Clevis Button Assembly

Natural (FDA-approved) Delrin

Clamp Ring

Motor Mounting Plate

Inlet Hose Connection

1-1/4" NPT Tapped (F)
1-1/2" Smooth
1-1/2" NPT Threaded (M)
2" Smooth

Outlet Hose Connection

1-1/4" NPT Tapped (F)
1-1/2" Smooth
1-1/2" NPT Threaded (M)
2" Smooth

Motor Options

12VDC, rpm: 60, torq: 84 in-lbs | psi: 10, head (ft): 23

Pre-Pak Accessories

Not selected
Hose, Cuffs, Clamps

Accessories

Service Kit
Service Kit
Hose
Hose
Hose end cuff
Hose end cuff
Strainer
Strainer
Motor support bracket
Motor support bracket
Quick-Release Connection
Quick-Release Connection
