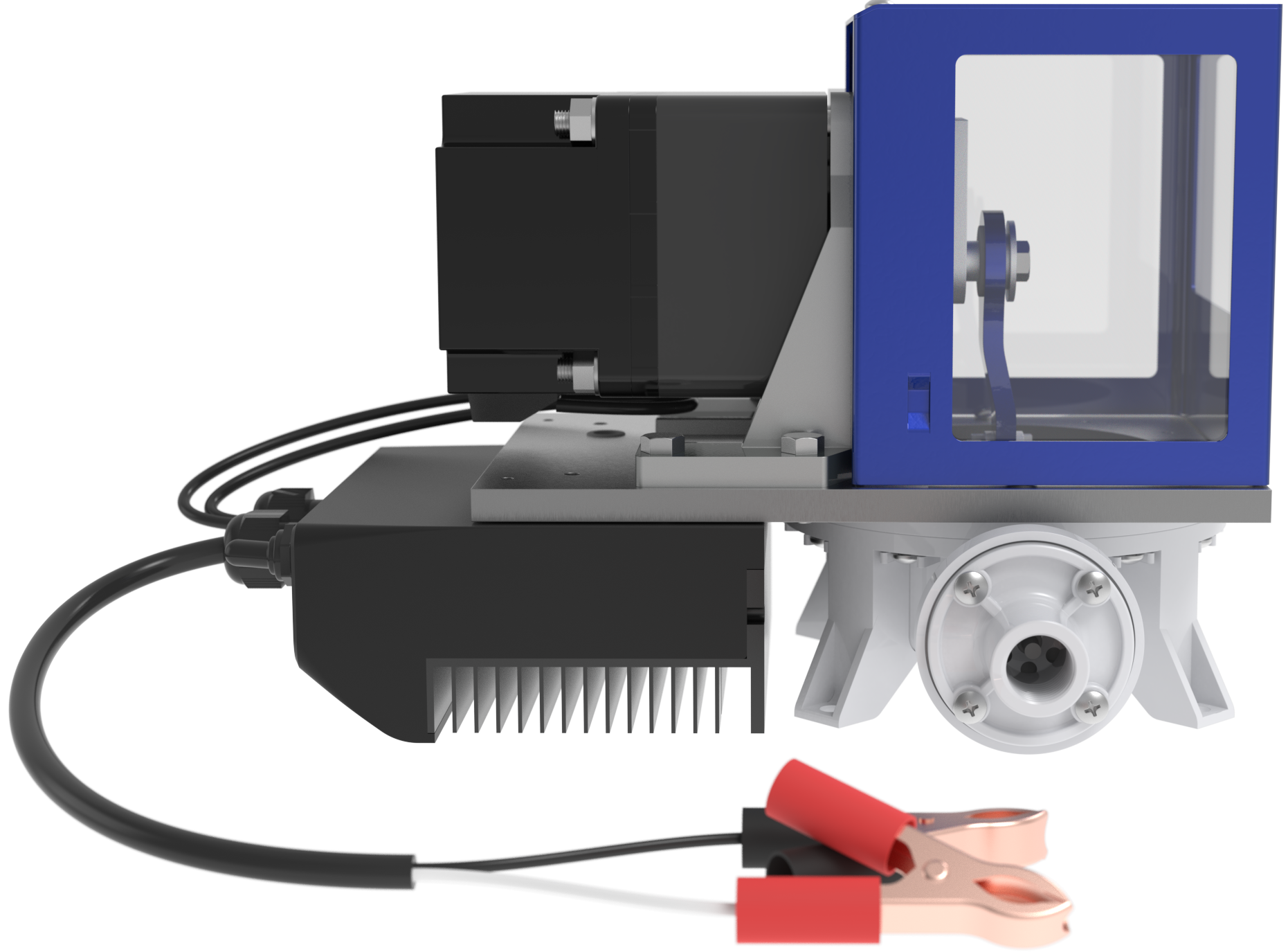

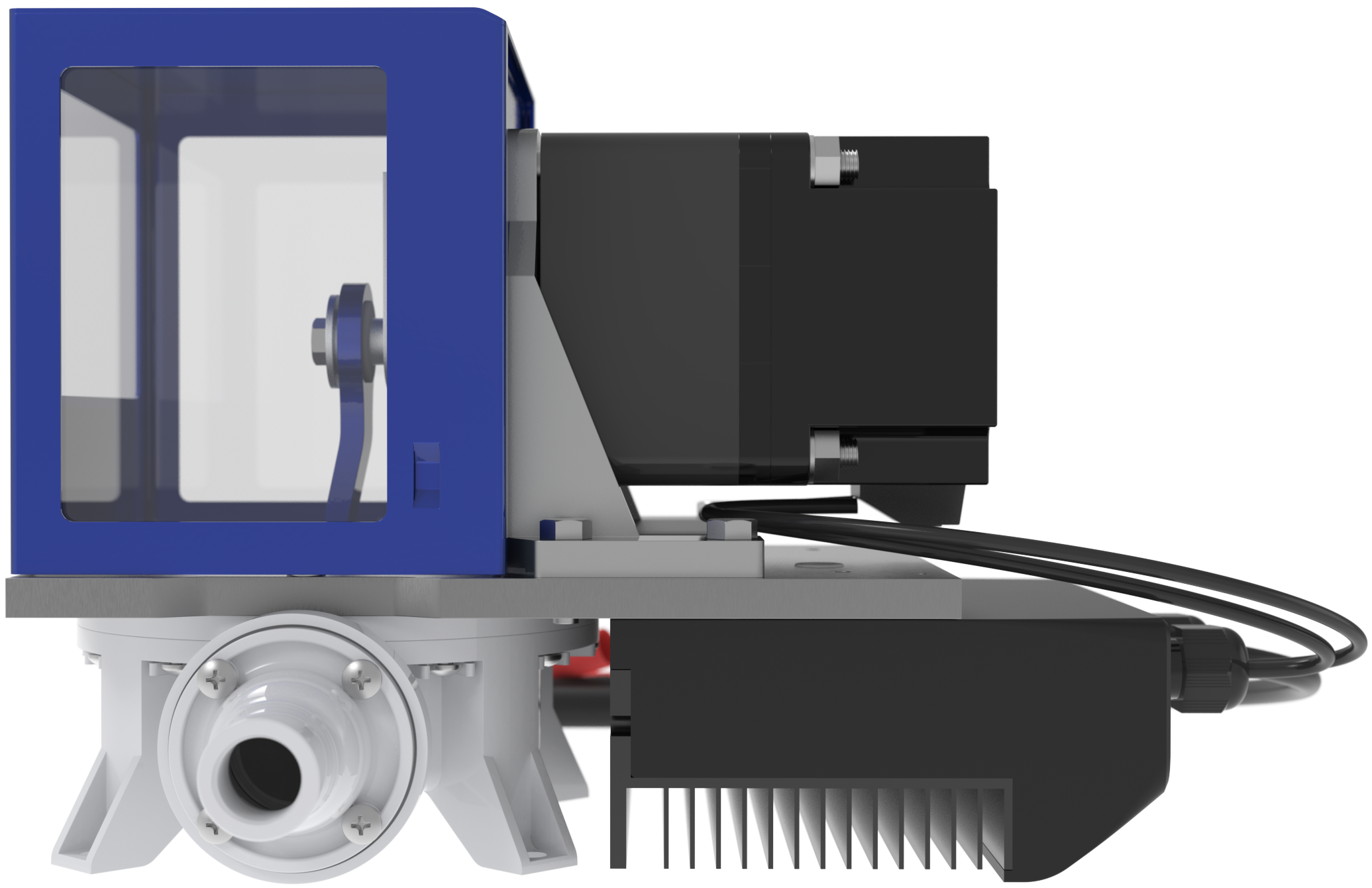

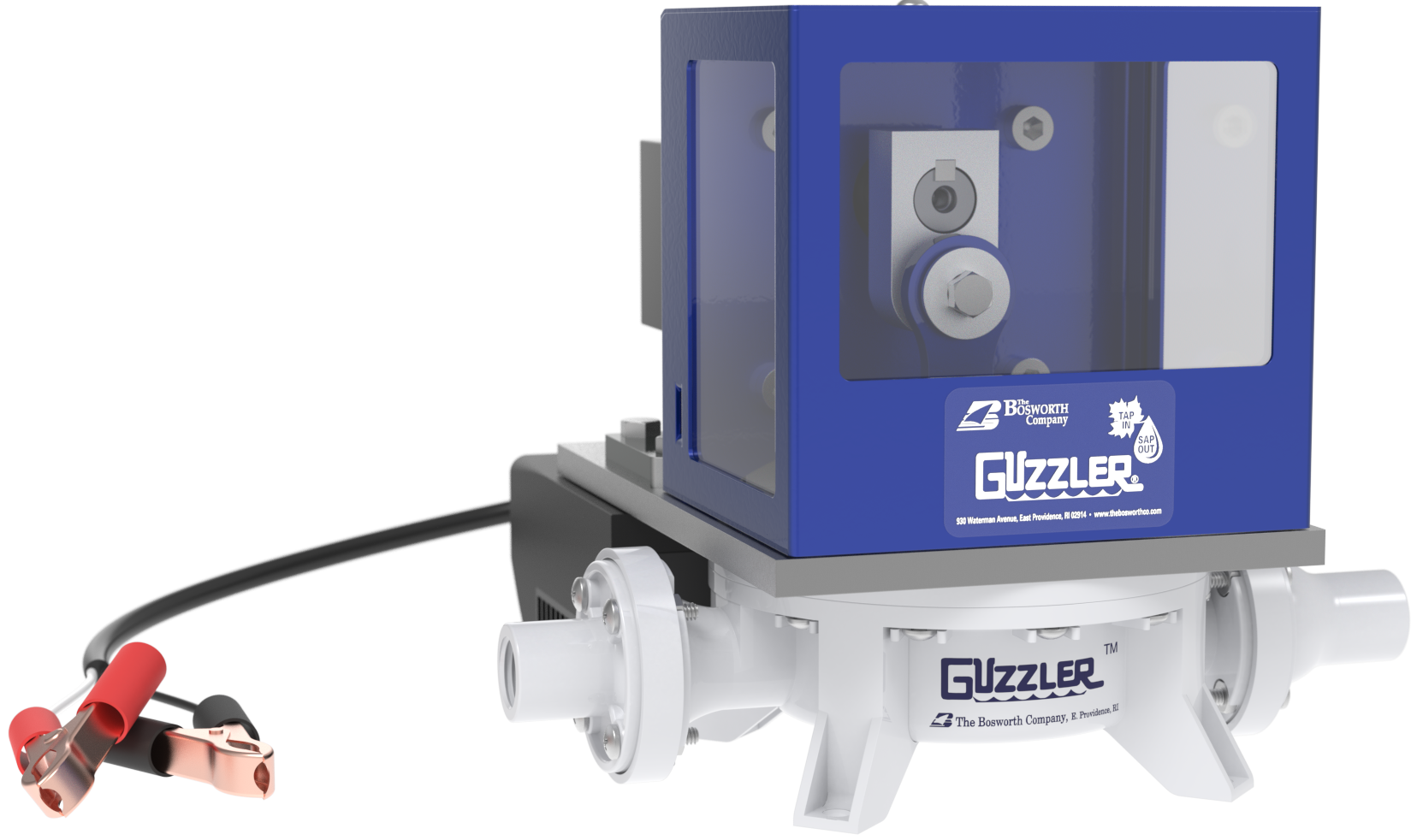

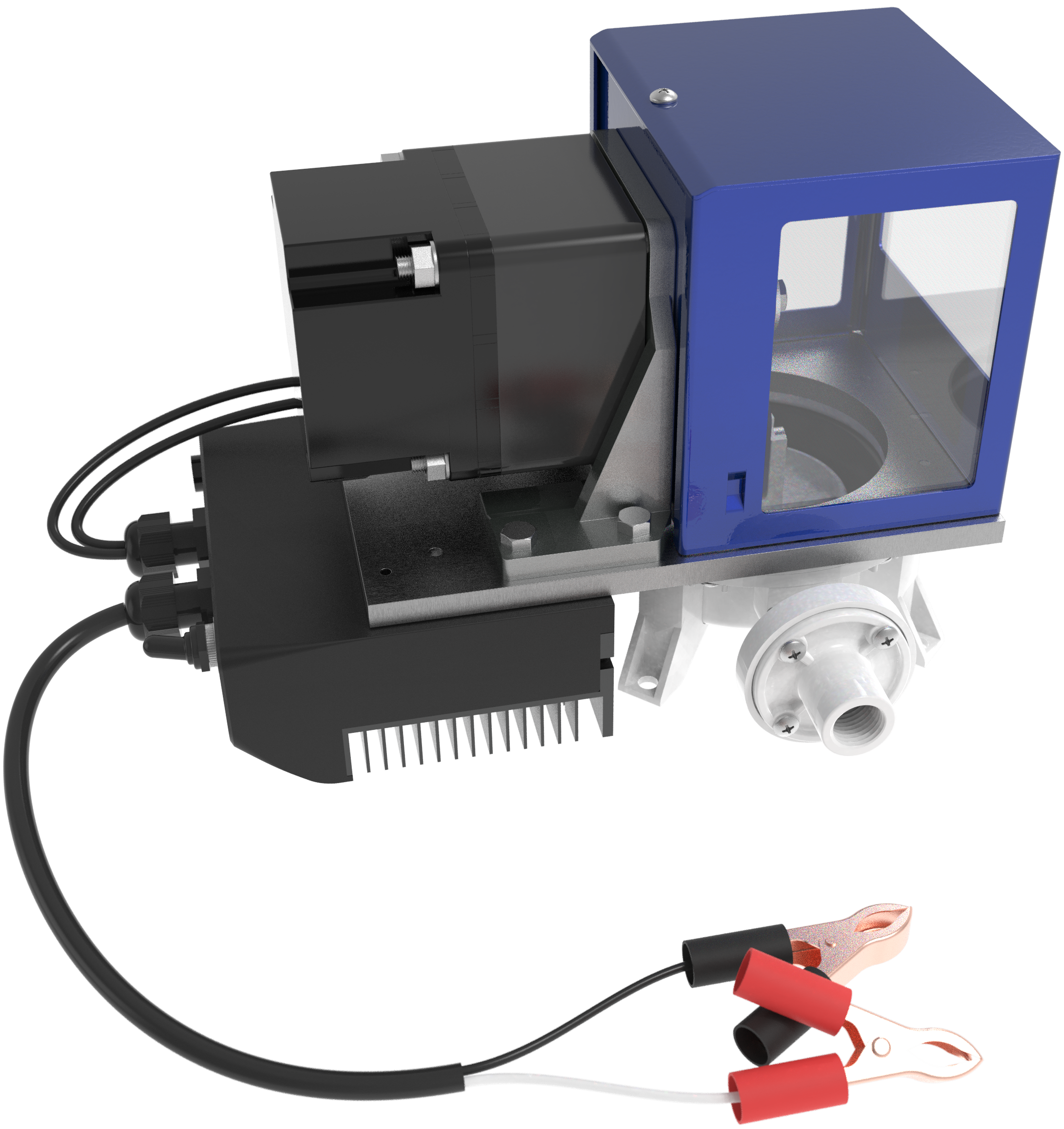

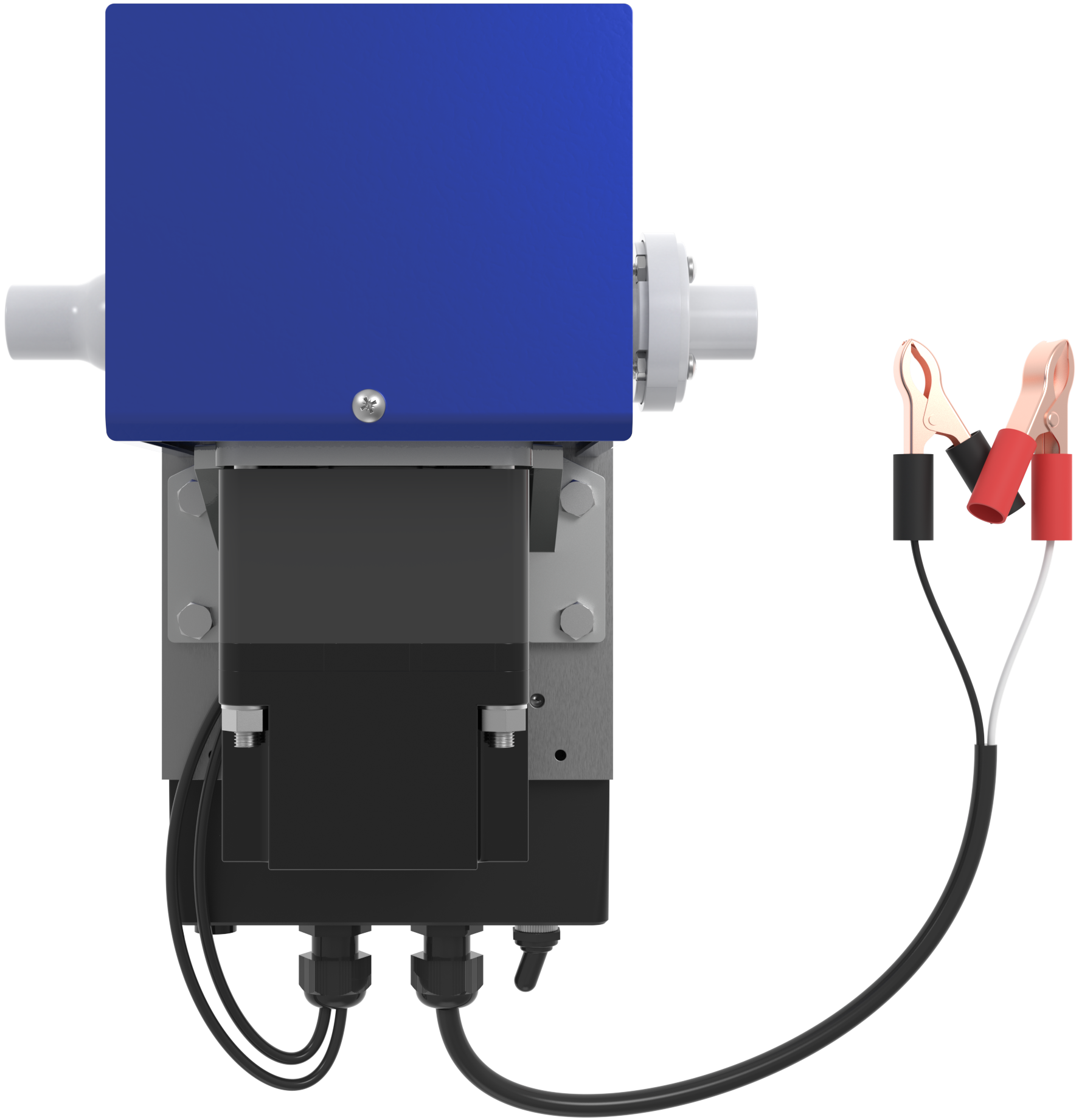

Guzzler® GE-0403N

ON BACKORDER. Next availablity: first week of February. Compact 12V Brushless DC Motorized Guzzler GE-0403N Pump. FDA-approved materials for wetted components. Accommodates up to 400 taps. Remotely control with SapCheck!

Features

  • Up to 29 in Hg vacuum on well-managed sugarbush lines (with wet valves)
  • Quiet-running, efficient 90 Watt, 12V Brushless DC motor can run for up to 20 hours on one 12v 60-amp hour battery
  • FDA-approved components for parts in contact with sap.
  • Supports up to 400 taps; 6.6 GPM (0.9 cfm). NO RELEASER REQUIRED.
  • Accommodates 3/4" mainline
  • Ships with spare diaphragm
  • Remotely monitor and control with SapCheck!

Performance Dependent on configuation

Max Pressure

Lift/Head


Capacity

Volume per stroke0.44 qt / 0.42 l
Max Service Temp220° F / 104° C

Downloads

Product Specification (English)
Product Specification (French)
Operator's Manual (English)
Operator's Manual (French)

Customize & Buy

Part Numbers / Price

Model

GE-0403N-071-58-4141-PK

SKU

GE0403N071584141PK

MSRP

$ 1,271.90

Store Locator
Replacement Parts

Speed Control

None

Valves

Umbrella (Silicone)

Diaphragm

Buna-N (Nitrile) (FDA-approved material)
Silicone (FDA-approved material)
Santoprene-White (FDA-approved material)

Clevis Button Assembly

Natural (FDA-approved) Delrin

Clamp Ring

Motor Mounting Plate

Inlet Hose Connection

3/4" NPT Tapped (F)
3/4" NPT Threaded (M)
1" Smooth
1" NPT Threaded (M)
1-1/8" Barbed

Outlet Hose Connection

3/4" NPT Tapped (F)
3/4" NPT Threaded (M)
1" Smooth
1" NPT Threaded (M)
1-1/8" Barbed

Motor Options

12VDC, rpm: 60, torq: 84 in-lbs | psi: 10, head (ft): 23

Pre-Pak Accessories

Not selected
Hose, Cuffs, Clamps

Accessories

Service Kit
Service Kit
Motor support bracket
Motor support bracket
Quick-Release Connection
Quick-Release Connection
