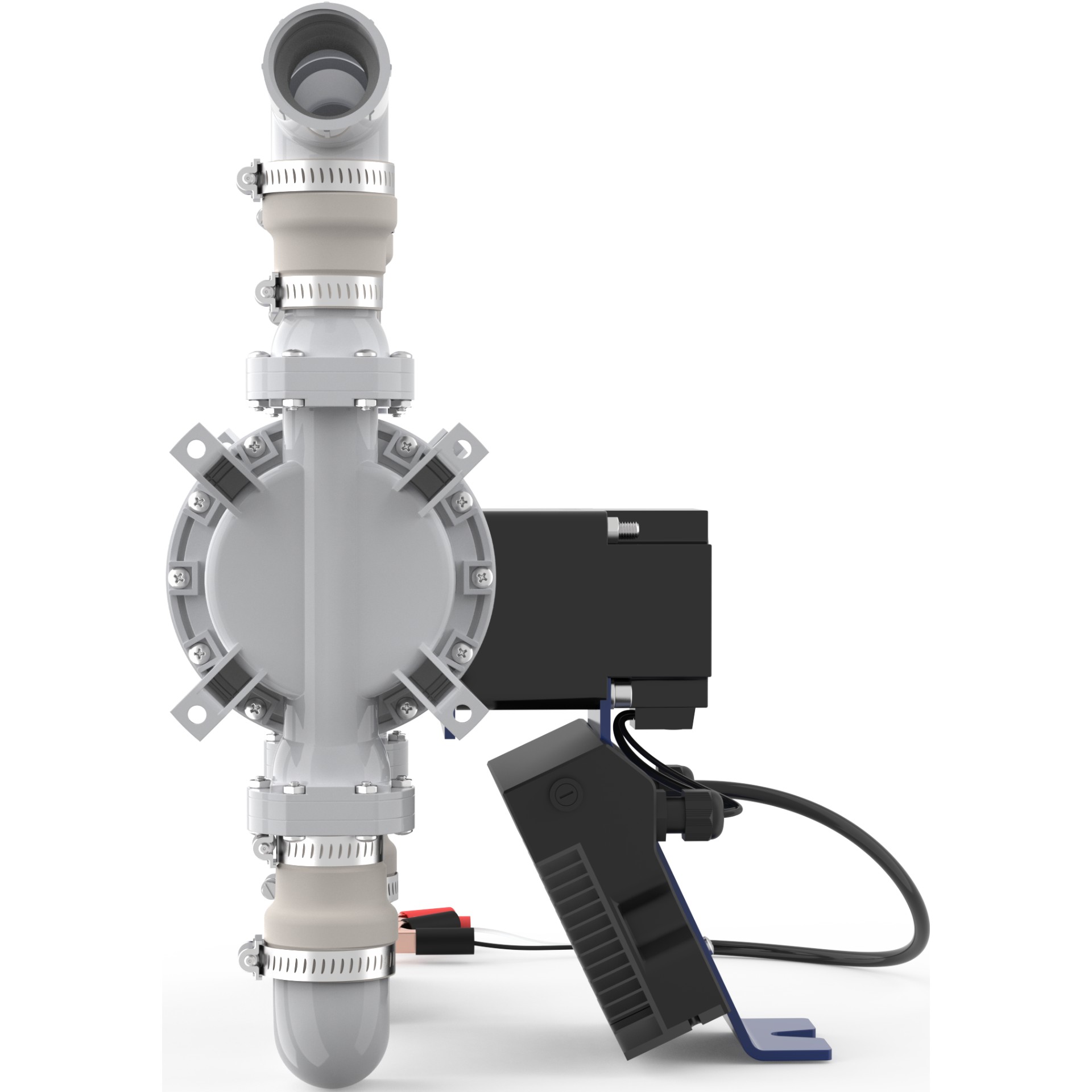

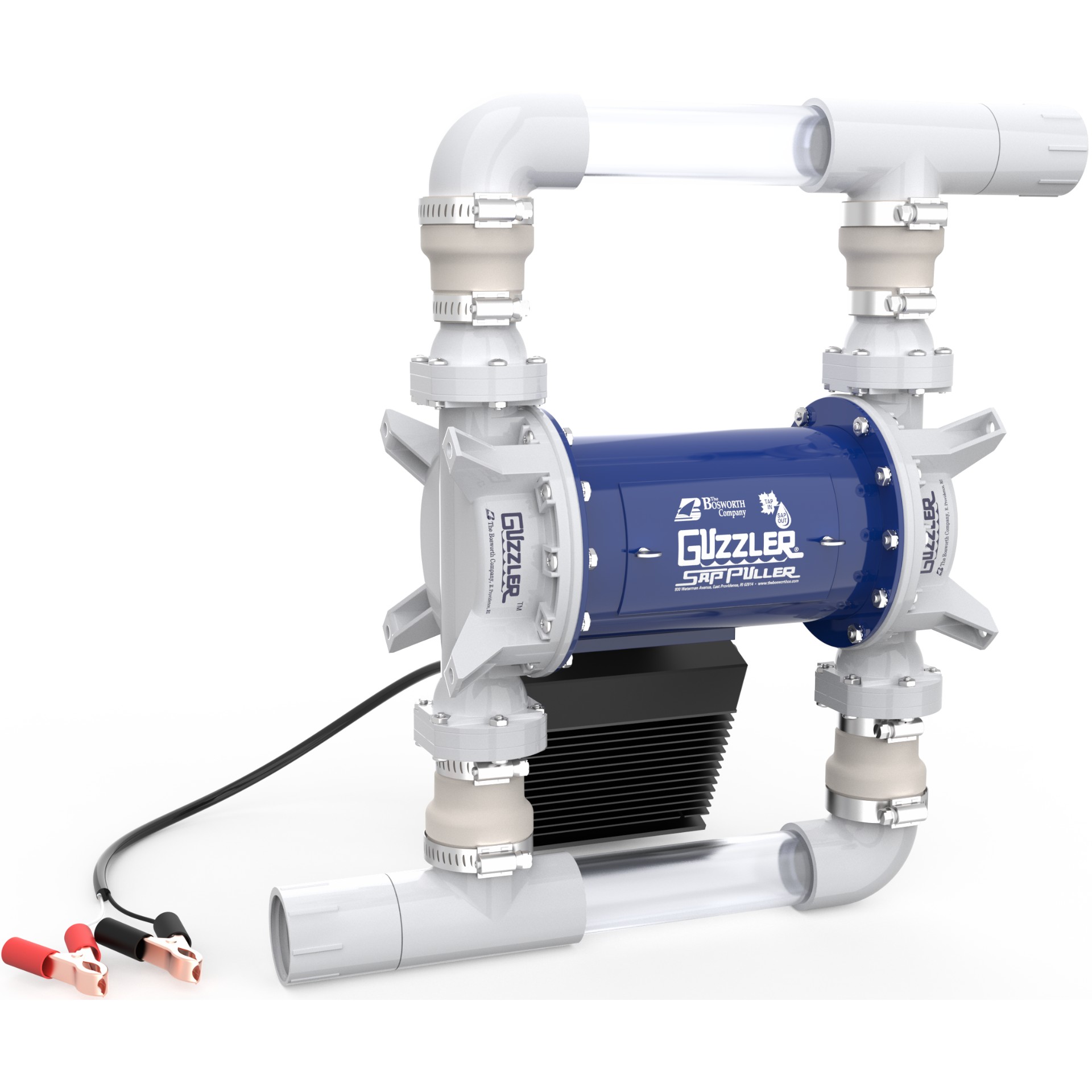

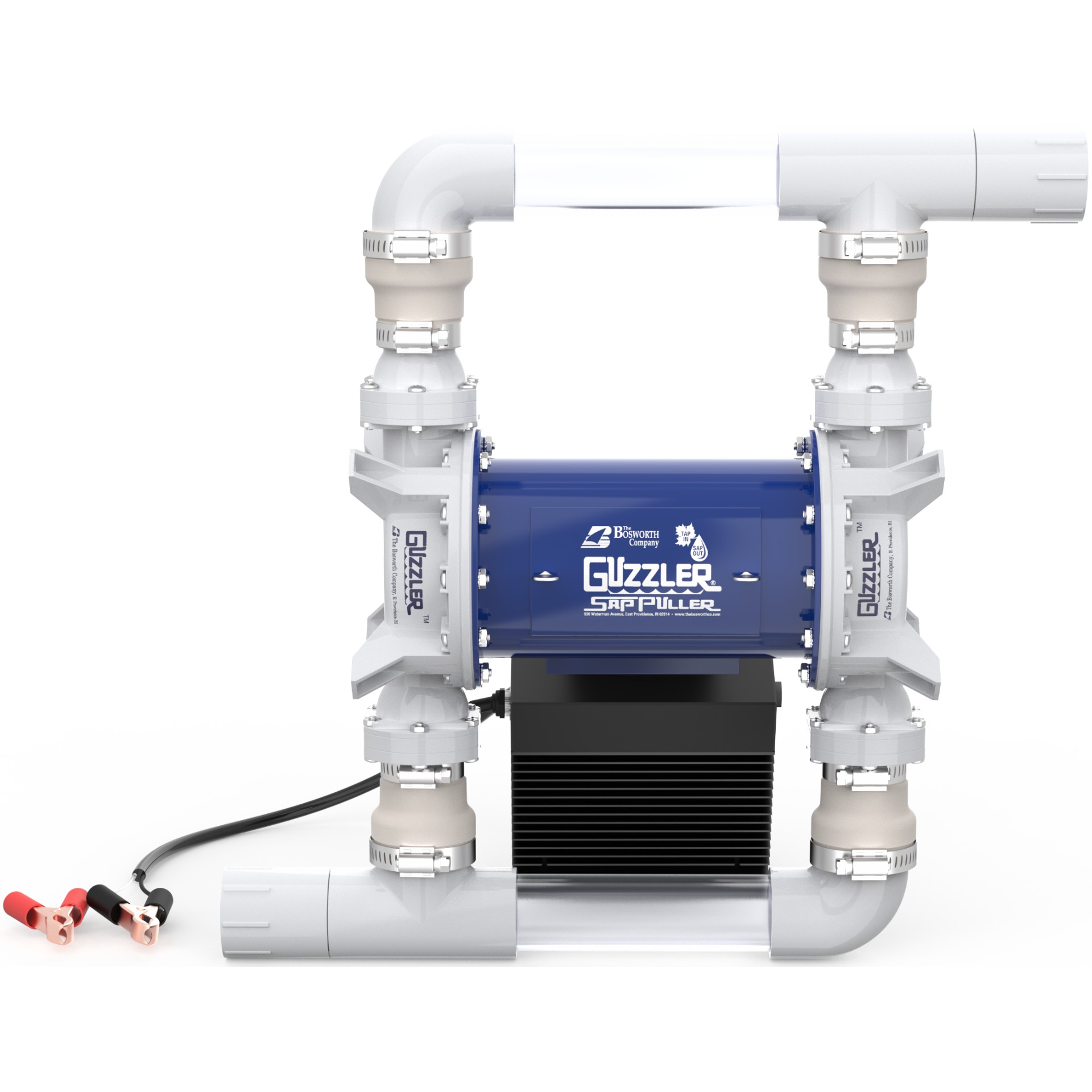

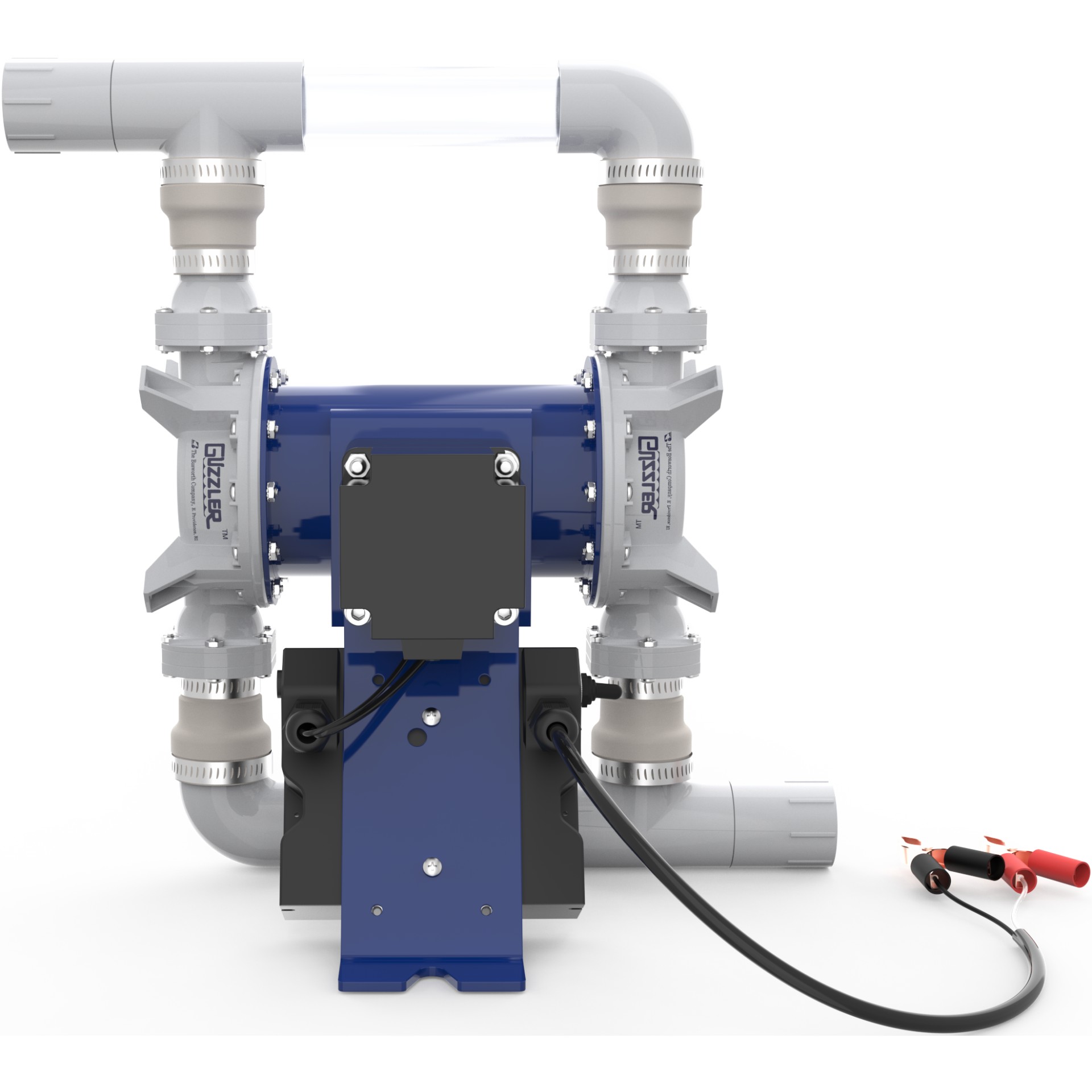

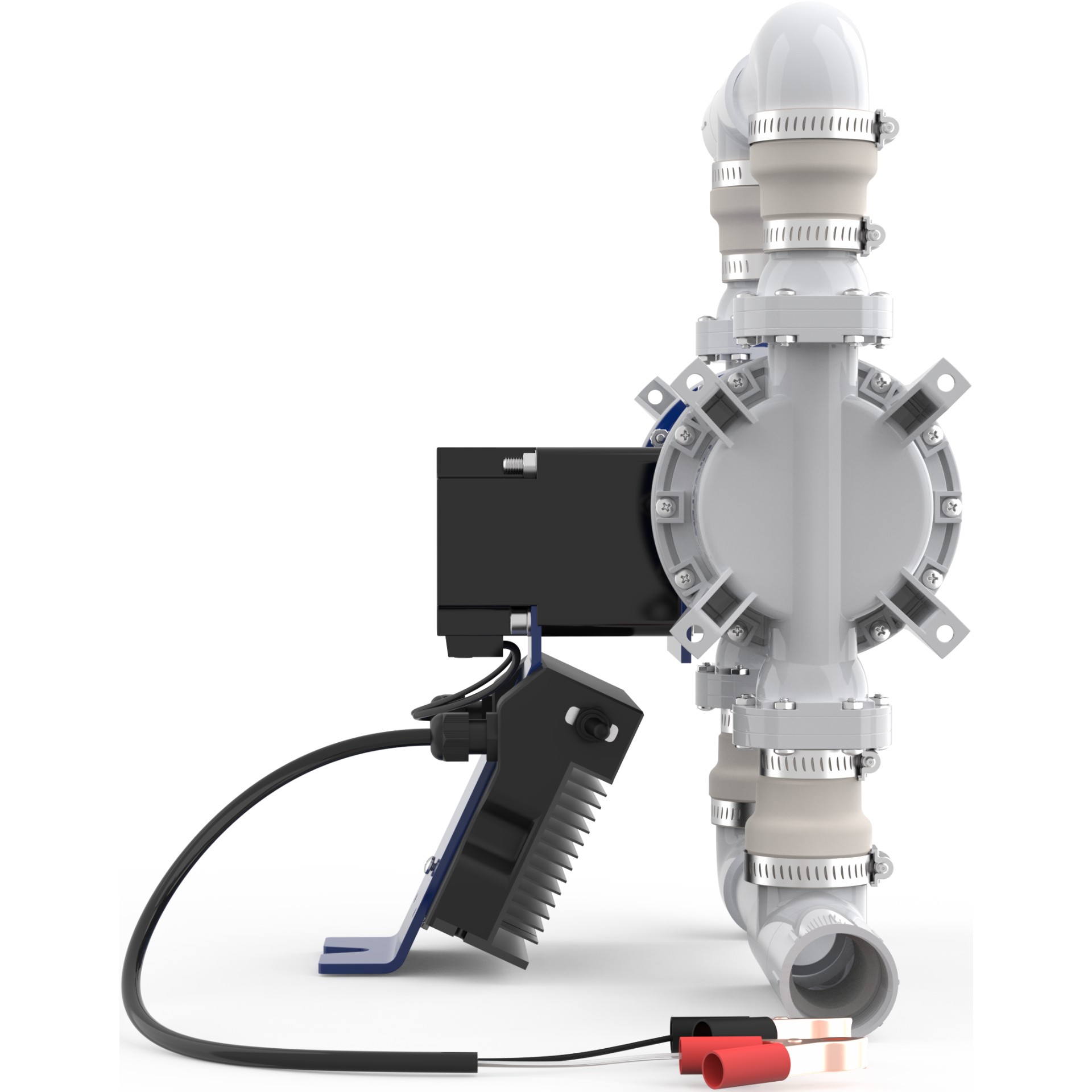

Guzzler® G2 12 VDC Double Diaphragm Pump

New! 12 VDC Double Diaphragm pump. Accommodates up to 800 taps. Use with 1-1/4" hose/tubing.

Features

  • Up to 29 in Hg vacuum on well managed sap lines (with wet valves)
  • Efficient 12 vdc motor can run pump for minimum of 17-20 hours on a single 60 amp-hour 12 vdc battery!
  • 17.6 gpm maixmum transfer rate
  • Buna-N diaphragm and silicone umbrella valves
  • Features 1-1/4" Female inlet/outlet PVC ports
  • Supports up to 900 taps
  • Can create vacuum and/or transfer fluid; no separator required
  • Ships with two spare diaphragms

Performance Dependent on configuation

Max Pressure Range15 - 15 psi / 1.00 - 1.00 bar
Lift/Head Range20.0 - 20.0 ft / 6.1 - 6.1 m
Capacity17.6 - 17.6 gpm / 66.6 - 66.6 lpm
Volume per stroke1.10 qt / 1.00 l
Max Service Temp140° F / 60° C

Downloads

Product Specification (English)
Product Specification (French)
Operator's Manual (English)
Operator's Manual (French)

Customize & Buy

Part Numbers / Price

Model

G2-0503N-071-98-7171-PK

SKU

G2-0503N

MSRP

$ 1,805.40

Store Locator
Replacement Parts

Handle Style

None

Valves

Umbrella (Silicone)

Diaphragm

Buna-N (Nitrile) (FDA-approved material)

Clevis/Button Assembly

Steel Crank Arm & Connecting Rod; Delrin Clevis

Clamp Ring

Motor Mounting Plate

Inlet Hose Connection

1-1/4" NPT Tapped (F)

Outlet Hose Connection

1-1/4" NPT Tapped (F)

Motor Options

12VDC, rpm: 60, torq: 84 in-lbs | psi: 10, head (ft): 23

Pre-Pak Accessories

Not available
